Milwaukee® 2206-20 Heavy Duty Digital Fork Meter, 200 A, 1000 V AC/DC, 40 mOhm, 50/60 Hz, 5/8 in Jaw, High Contrast White on Black LCD Display
Milwaukee® 2206-20 Heavy Duty Digital Fork Meter, 200 A, 1000 V AC/DC, 40 mOhm, 50/60 Hz, 5/8 in Jaw, High Contrast White on Black LCD Display
Milwaukee® 2206-20 Heavy Duty Digital Fork Meter, 200 A, 1000 V AC/DC, 40 mOhm, 50/60 Hz, 5/8 in Jaw, High Contrast White on Black LCD Display
Milwaukee® 2206-20 Heavy Duty Digital Fork Meter, 200 A, 1000 V AC/DC, 40 mOhm, 50/60 Hz, 5/8 in Jaw, High Contrast White on Black LCD Display
Milwaukee® 2206-20 Heavy Duty Digital Fork Meter, 200 A, 1000 V AC/DC, 40 mOhm, 50/60 Hz, 5/8 in Jaw, High Contrast White on Black LCD Display

Milwaukee® 2206-20 Heavy Duty Digital Fork Meter, 200 A, 1000 V AC/DC, 40 mOhm, 50/60 Hz, 5/8 in Jaw, High Contrast White on Black LCD Display

Milwaukee® 2206-20 Heavy Duty Digital Fork Meter, 200 A, 1000 V AC/DC, 40 mOhm, 50/60 Hz, 5/8 in Jaw, High Contrast White on Black LCD Display

Manufacturer: Milwaukee Tool
Brand: Milwaukee®
Part #: MIL-2206-20
MPN: 2206-20
CPN:
AC Current Accuracy      :      +/-2% +/-5 Digits
AC Response      :      True RMS
Counts      :      4000
Dimensions      :      8 in L
Display Type      :      High Contrast White on Black LCD
Electrical Ratings      :      200 A, 1000 V AC/DC
Frequency Rating      :      50/60 Hz
Jaw Capacity      :      5/8 in
Operating Temperature      :      -40 to 752 deg F
Power Source      :      AA Alkaline Battery
Resistance      :      40 mOhm
Safety Rating      :      CAT IV 600 V, CAT III 1000 V
Type      :      Heavy Duty Digital

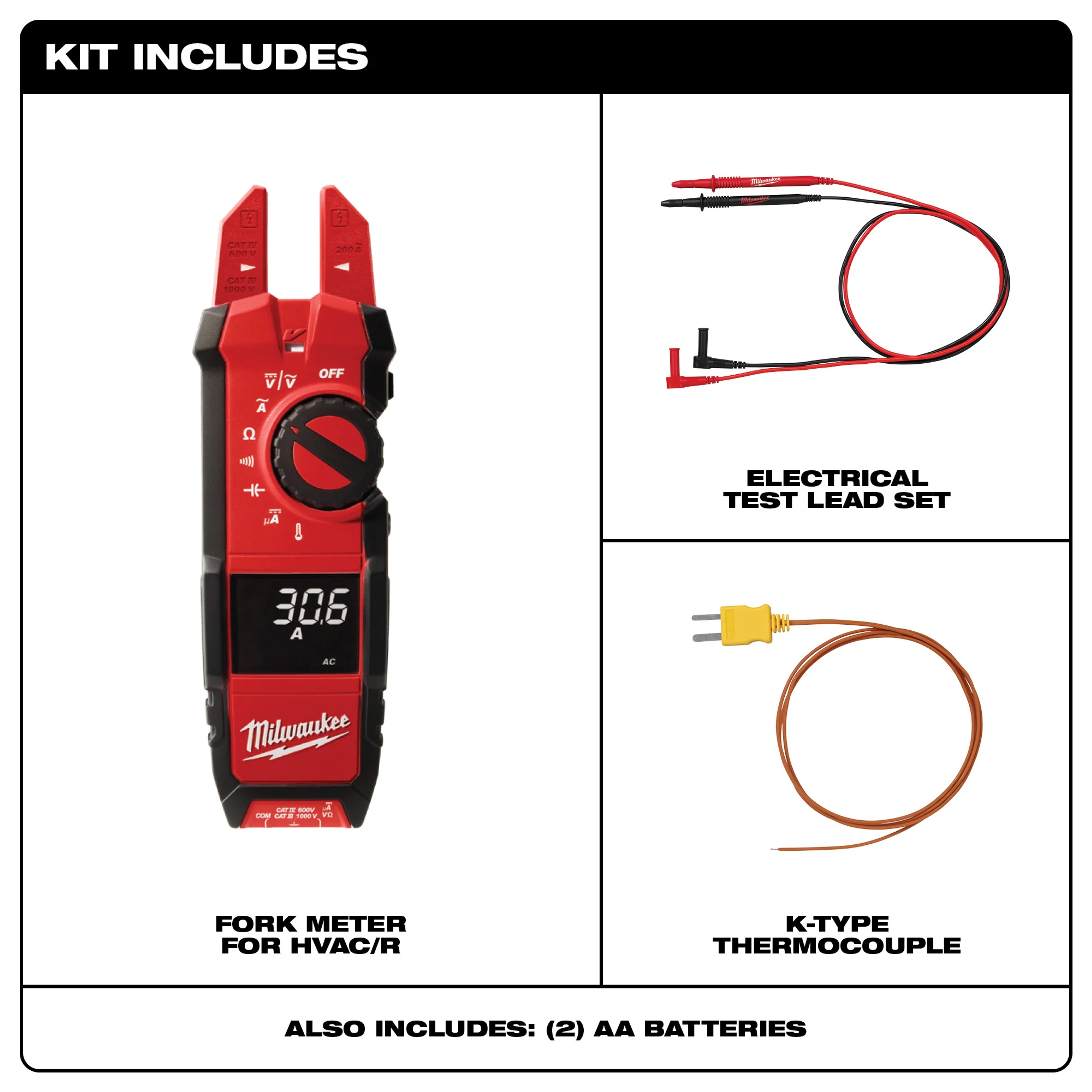

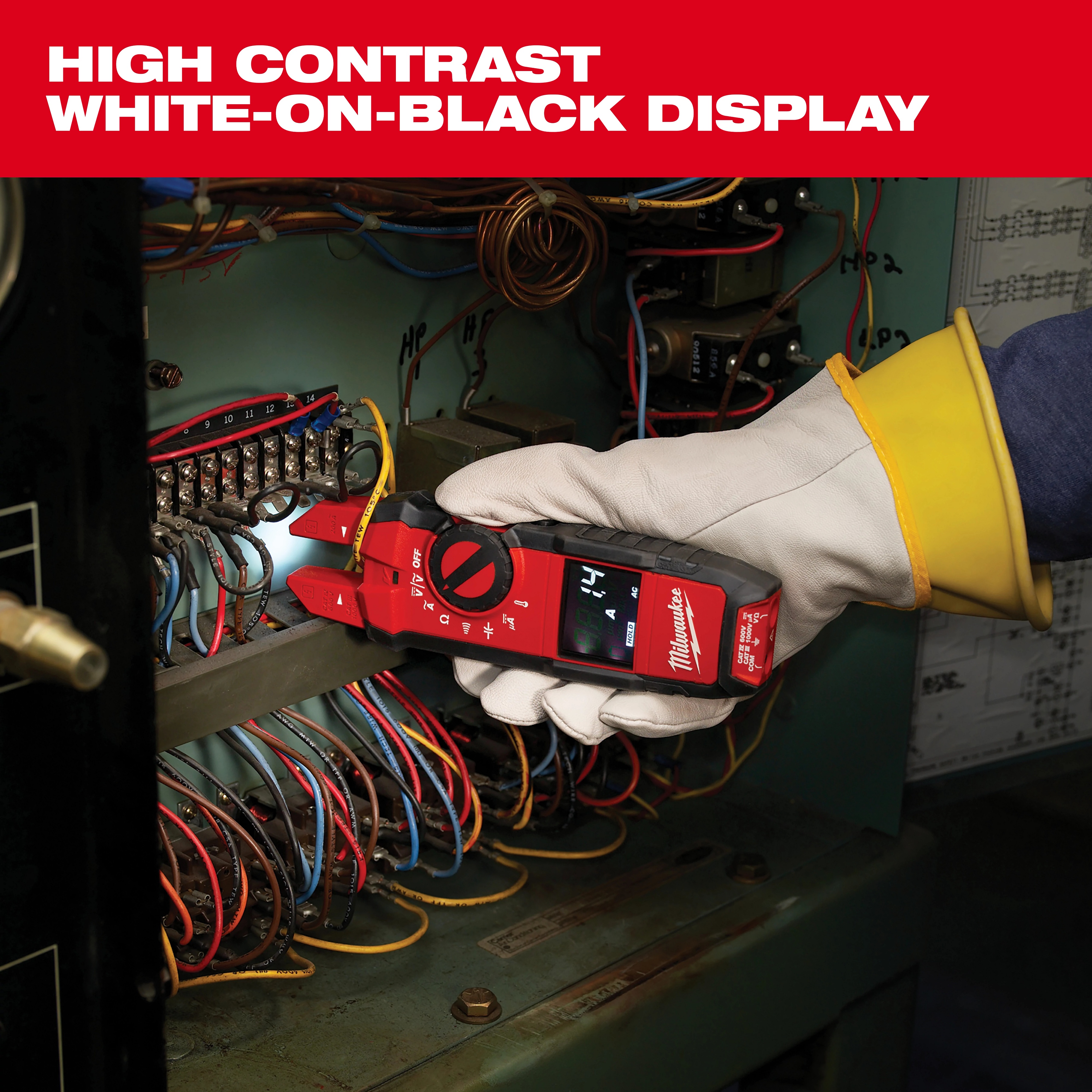

The Milwaukee fork meter for HVAC/R is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2206-20 is five tools in one providing current measurement, temperature measurement, voltage measurement, voltage detection and task lighting. In addition, the new tool provides a wide 0.63 in. fork opening, high 200 amp current range and a high contrast white-on-black display.

Milwaukee® Fork Meter, Heavy Duty Digital, 200 A, 1000 V AC/DC Electrical Rating, 40 mOhm Resistance, 50/60 Hz Frequency, 5/8 in Jaw, 4000 Count, High Contrast White on Black LCD Display, True RMS AC Response, +/-2% +/-5 Digits AC Current Accuracy, Safety Rating: CAT IV 600 V, CAT III 1000 V, AA Alkaline Battery Power Source, -40 to 752 deg F Operating, 8 in L Dimensions

  • 600 uA DC for Flame Rectification
  • Built-In Voltage Detector and LED Work Light
  • Measures up to 200 A Wide 0.63 in jaw opening
  • Rugged over-molding increases durability and user grip
