| Applicable Materials | : | Metal and Wood |
| Cutting Depth | : | 1/4 in |
| Cutting Edge Material | : | HSS |
| Flute Type | : | Parabolic |
| Material | : | HSS |
| Overall Length | : | 3-1/2 in |
| Point Angle | : | 135 deg |
| Point Type | : | Split |
| Shank Size | : | 1/4 in |
| Shank Type | : | 3-Flat |
| Type | : | Tapered |
Milwaukee® Thunderbolt® pilot bits are designed for extreme durability and long life. The Thunderbolt® web features a thicker core than a standard pilot bit, which provides ultimate strength and protects against side-load breakage. A specially designed parabolic flute form clears chips and debris fast to keep the bit cool. A precision start, 135° split point tip starts on contact to keep the bit from walking for fast, accurate holes. Excellent for drilling on curved surfaces, requires less effort to drill and is highly recommended for use with portable drills.

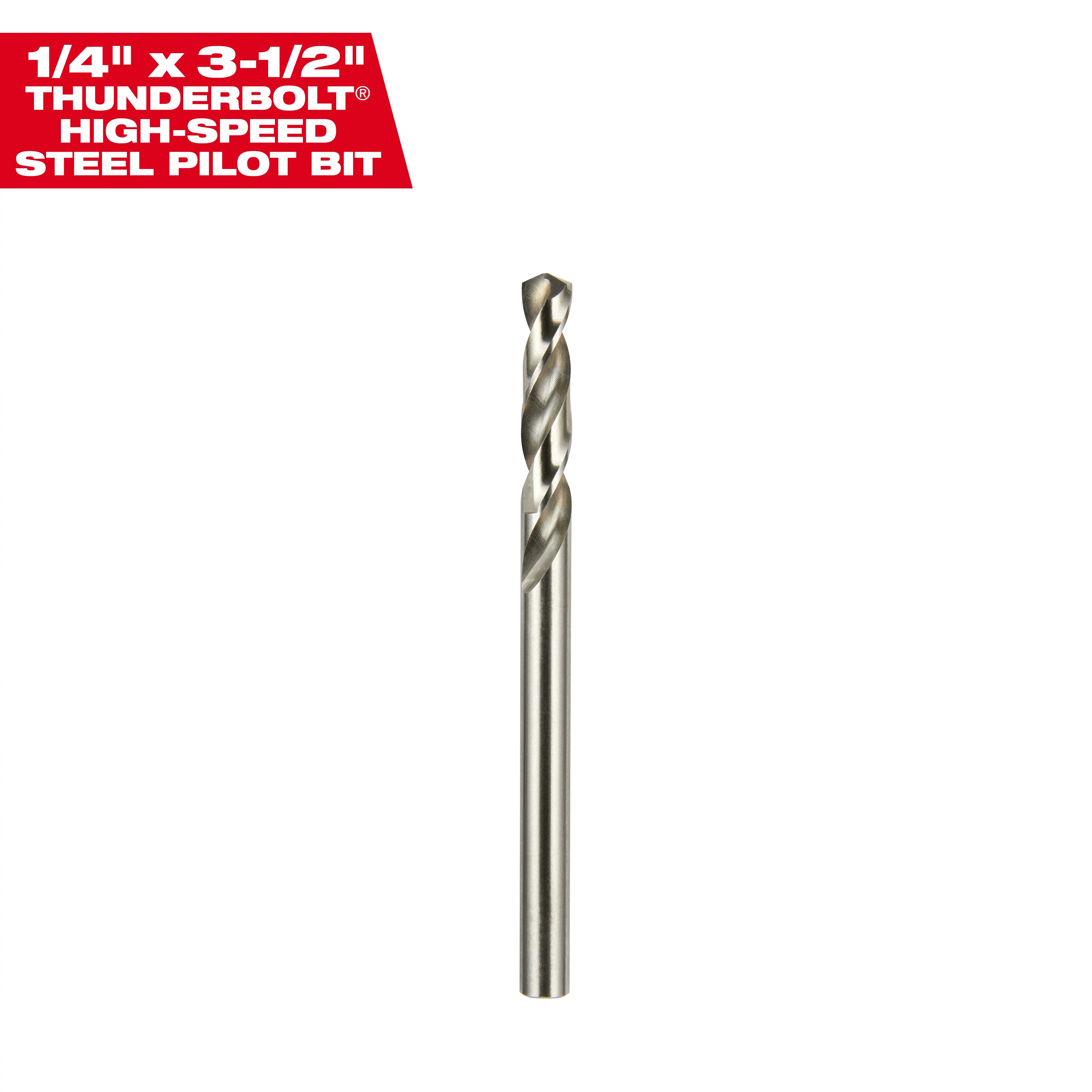

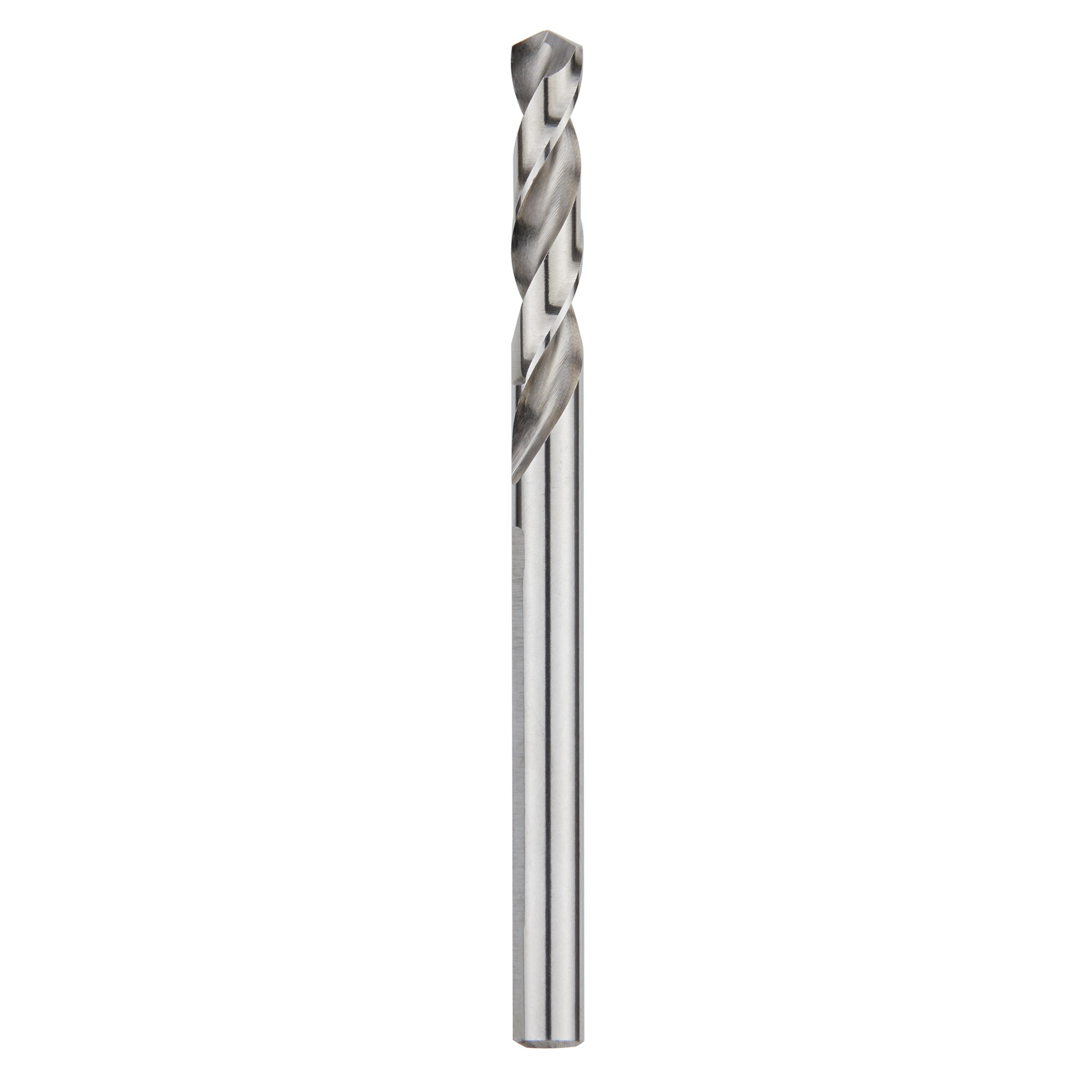

Milwaukee® Thunderbolt® Pilot Drill, Tapered, 3-Flat Shank, 1/4 in Shank, 3-1/2 in Overall Length, 1/4 in Cutting Depth, Parabolic Flute, 135 deg Point, Split Point, HSS Cutting Edge, HSS, Applicable Materials: Metal and Wood
- 135 deg split point provides accurate hole placement
- 1-flat shank won't slip in arbor or chuck
