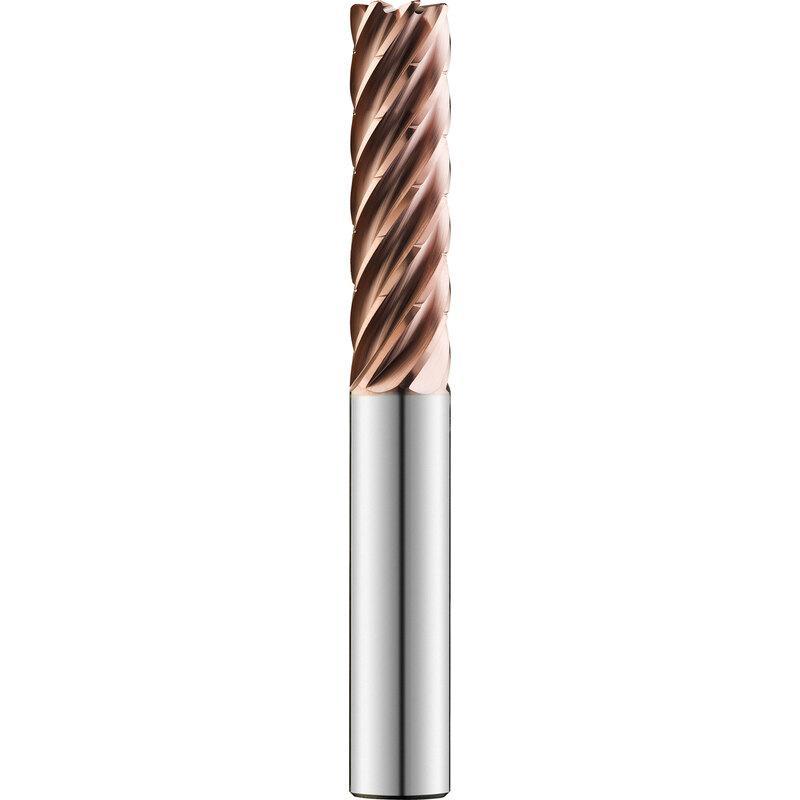

SGS® H-Carb 77339 77CR High Efficiency Imperial Chip Breaker Corner Radius End Mill, 1 in Dia Cutter, 0.12 in Corner Radius, 4 in Length of Cut, 7 Flutes, 1 in Dia Shank, 7 in OAL, Ti-Namite-M Coated
SGS® H-Carb 77339 77CR High Efficiency Imperial Chip Breaker Corner Radius End Mill, 1 in Dia Cutter, 0.12 in Corner Radius, 4 in Length of Cut, 7 Flutes, 1 in Dia Shank, 7 in OAL, Ti-Namite-M Coated
| Corner Radius | : | 0.12 in |
| Cutter Diameter | : | 1 in |
| Cutting Direction | : | Right Hand |
| Finish | : | Ti-Namite-M Coated |
| Flute Type | : | Spiral |
| Helix Angle | : | 37 deg |
| Length of Cut | : | 4 in |
| Material | : | Solid Carbide |
| Number of Flutes | : | 7 |
| Overall Length | : | 7 in |
| Series | : | 77CR |
| Shank Diameter | : | 1 in |
| Shank Type | : | Straight |
| Type | : | High Efficiency Imperial Chip Breaker |

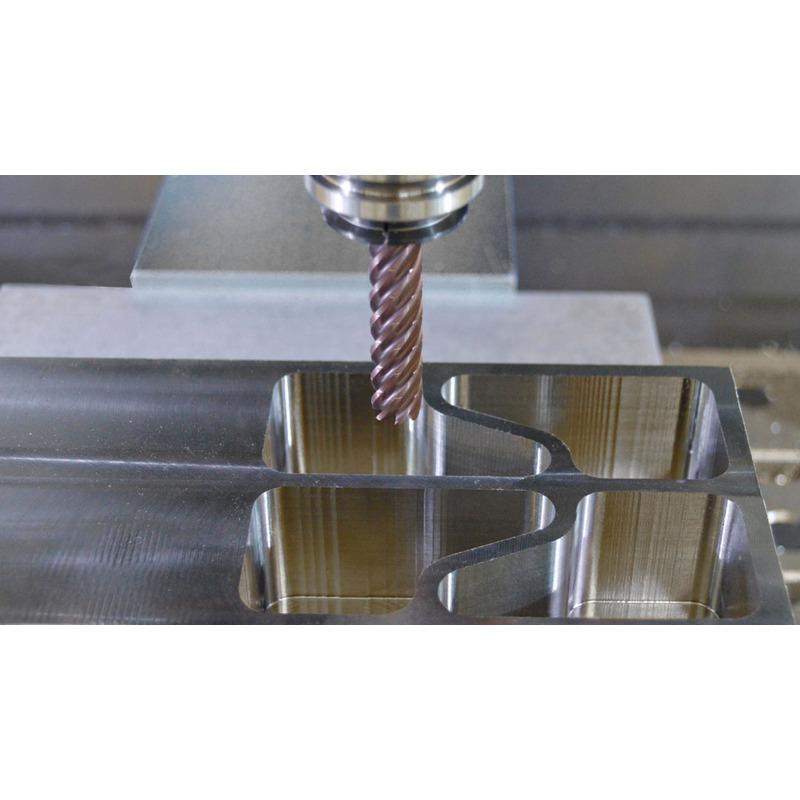

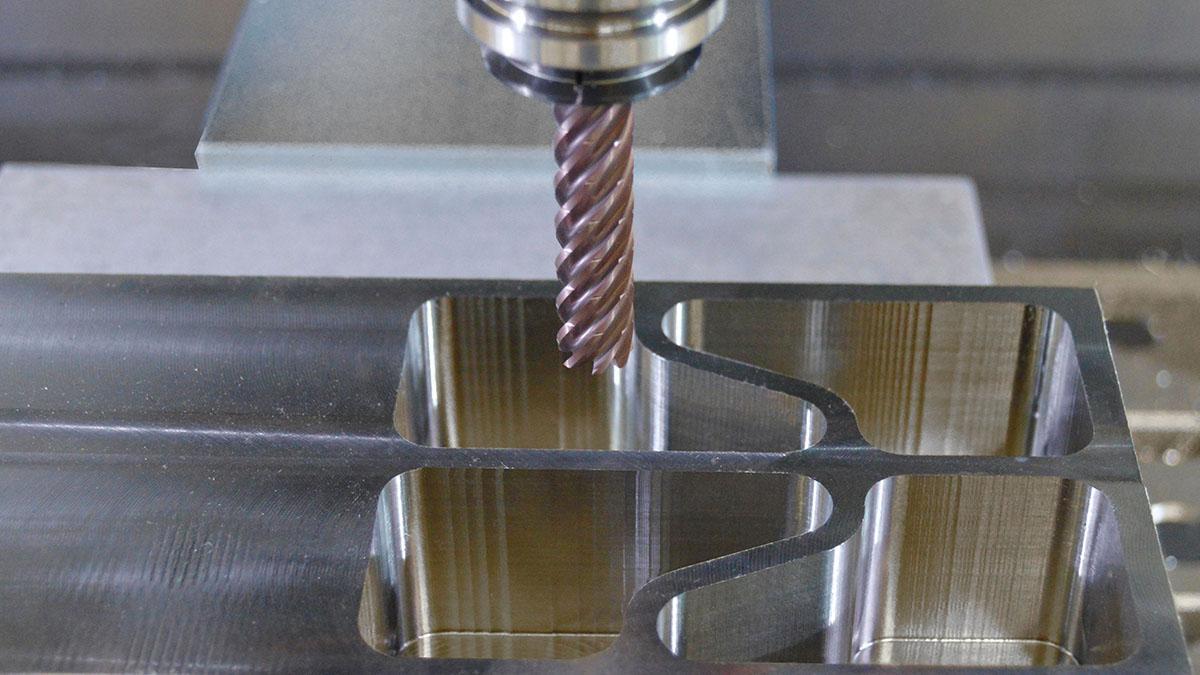

The new H-Carb 7-flute high efficiency end mill specializes in deep axial trochoidal and high speed machining applications offered at various lengths of cut. The specialized core and flute design improves rigidity and chip flow while reducing deflection. The 7-flute design allows for superior finishes at higher speed and feed rates versus 5 and 6 flute tools.
SGS® H-Carb Corner Radius End Mill, High Efficiency Imperial Chip Breaker, Series: 77CR, 1 in Cutter Dia, 0.12 in Corner Radius, 7 in Overall Length, 4 in Length of Cut, 7 Flutes, Spiral Flute, 1 in Shank Dia, Right Hand Cutting, 37 deg Helix Angle, Straight Shank, Solid Carbide, Ti-Namite-M Coated
- Optimized core improves rigidity, chip flow and reduces deflection
- Chip Breaker design breaks up chips from the long flute length allowing for better chip flow and evacuation in deep pocketing operations
