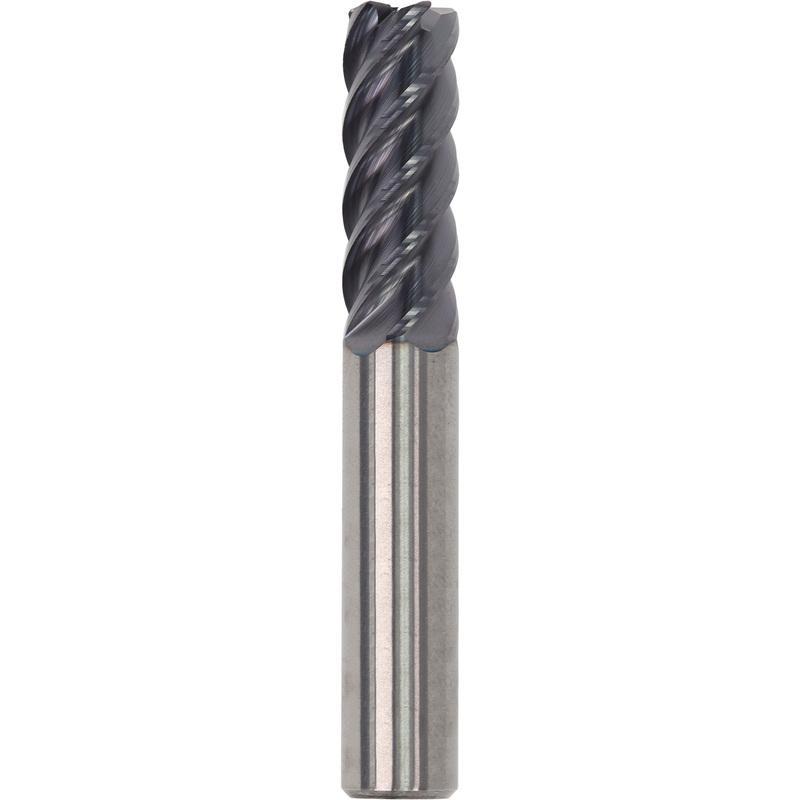

SGS® 32619 V-Carb™ 55CR Center Cutting High Performance Positive Rake Single End End Mill, 5/16 in Dia Cutter, 0.015 in Corner Radius, 7/16 in Length of Cut, 5 Flutes, 5/16 in Dia Shank, 2 in OAL, AlTiN Coated
SGS® 32619 V-Carb™ 55CR Center Cutting High Performance Positive Rake Single End End Mill, 5/16 in Dia Cutter, 0.015 in Corner Radius, 7/16 in Length of Cut, 5 Flutes, 5/16 in Dia Shank, 2 in OAL, AlTiN Coated
| Corner Radius | : | 0.015 in |
| Cutter Diameter | : | 5/16 in |
| Cutting Direction | : | Right Hand |
| Finish | : | AlTiN Coated |
| Flute Type | : | Right Spiral |
| Helix Angle | : | 45 deg |
| Length of Cut | : | 7/16 in |
| Material | : | Solid Carbide |
| Number of Flutes | : | 5 |
| Overall Length | : | 2 in |
| Series | : | V-Carb™ 55CR |
| Shank Diameter | : | 5/16 in |
| Shank Length | : | 1.5625 in |
| Shank Type | : | Straight |
| Type | : | Center Cutting High Performance Positive Rake Single End |
V-Carb™ end mills set the standard for peak finish quality. These 5-flute, unequal helix tools feature unequal indexing and an ideal rake and relief combination for unmatched finishing capability. Available with a full selection of corner radii and ball nose configurations, the V-Carb™ portfolio is well equipped to handle your complex finishing requirements.
SGS® End Mill, Center Cutting High Performance Positive Rake Single End, Series: V-Carb™ 55CR, 5/16 in Diameter Cutter, 0.015 in Corner Radius, 2 in Overall Length, 7/16 in Length of Cut, 5 Flutes, Right Spiral Flute, 5/16 in Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Straight Shank, 1.5625 in Shank Length, Solid Carbide, AlTiN Coated
- Unequal indexing, high helix and an ideal rake and relief combination for unmatched finishing capability
- The choice when peak finish quality is the requirement
- Enhanced corner geometry with tight tolerance corner radii
- Recommended for materials <= 45 HRc (<= 420 Bhn)
