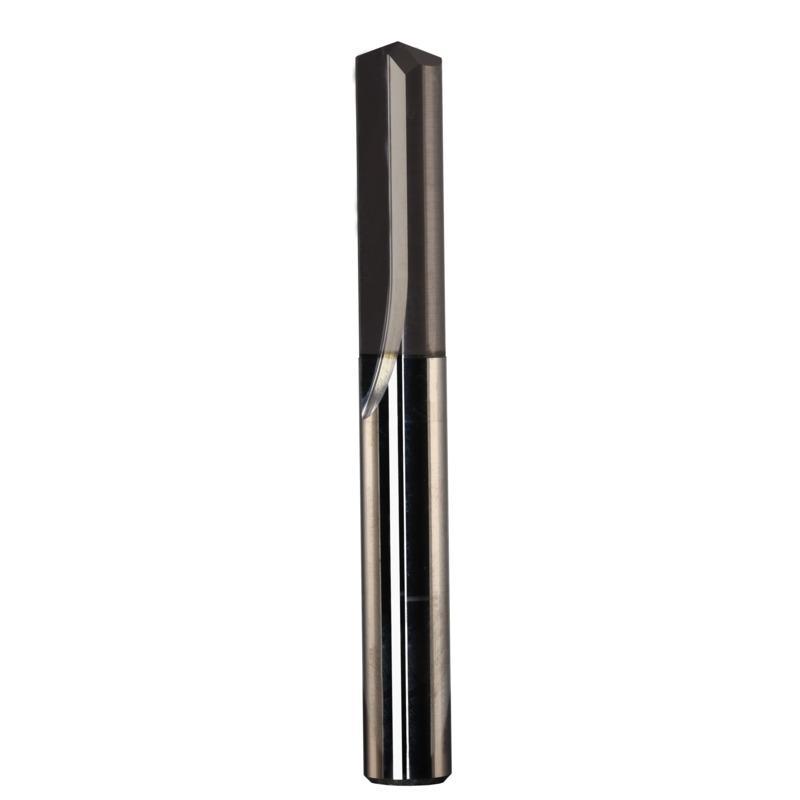

SGS® 66034 106M General Purpose Straight Flute Drill Bit, 9.5 mm Drill - Metric, 0.374 in Drill - Decimal Inch, 3XD D Cutting, 2 Flutes, Micrograin Solid Carbide
SGS® 66034 106M General Purpose Straight Flute Drill Bit, 9.5 mm Drill - Metric, 0.374 in Drill - Decimal Inch, 3XD D Cutting, 2 Flutes, Micrograin Solid Carbide
Manufacturer: KYOCERA SGS Precision tools, Inc.
Brand: SGS®
Part #: SGS-66034
MPN: 66034
CPN:
| Applicable Materials | : | Cast Iron, Hardened Steel and Steel |
| Cutting Depth | : | 3XD |
| Cutting Direction | : | Right Hand |
| Cutting Edge Material | : | Micrograin Solid Carbide |
| Drill Diameter Measurement System | : | Metric/Imperial |
| Drill Size - Decimal Inch | : | 0.374 in |
| Drill Size - Metric | : | 9.5 mm |
| Finish | : | AlTiN Coated |
| Flute Length | : | 40 mm |
| Flute Type | : | Straight |
| Material | : | Micrograin Solid Carbide |
| Number of Flutes | : | 2 |
| Overall Length | : | 84 mm |
| Point Angle | : | 140 deg |
| Point Type | : | Standard |
| Series | : | 106M |
| Shank Size | : | 9.5 mm |
| Shank Type | : | Straight |
| Through Coolant (Yes/No) | : | No |
| Type | : | General Purpose |
SGS® Straight Flute Drill Bit, General Purpose, Series: 106M, Metric/Imperial, 9.5 mm Drill - Metric, 0.374 in Drill - Decimal Inch, 84 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Straight Flute, 40 mm Flute Length, 9.5 mm Shank, Straight Shank, 140 deg Point, Standard Point, Right Hand Cutting Direction, Micrograin Solid Carbide Cutting Edge, Applicable Materials: Cast Iron, Hardened Steel and Steel, No Through Coolant, Micrograin Solid Carbide, AlTiN Coated
