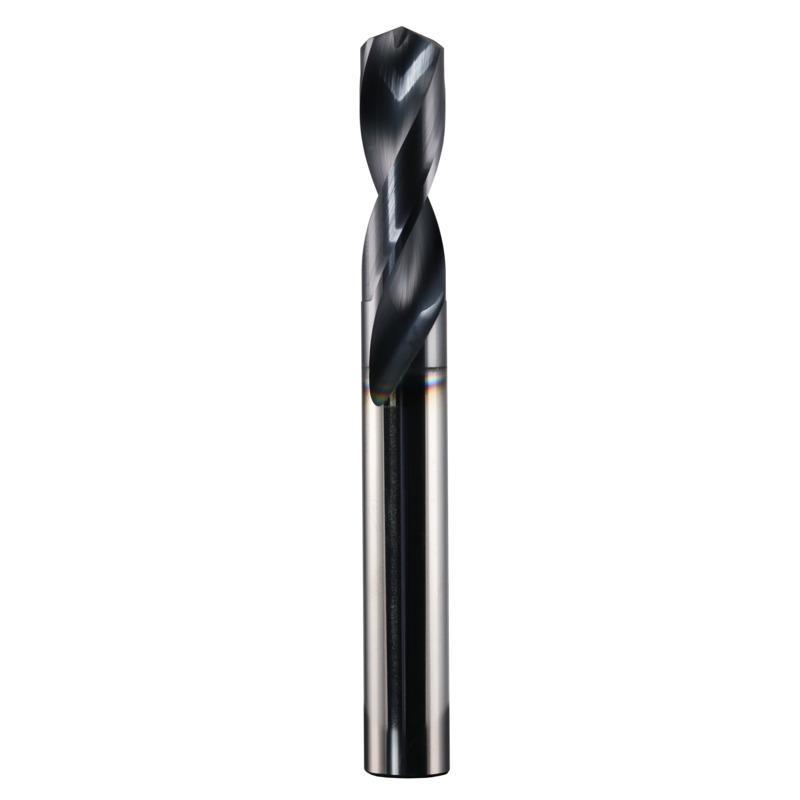

SGS® 68676 108M Plus General Purpose Short Length Drill Bit, 2.8 mm Drill - Metric, 0.1102 in Drill - Decimal Inch, Micrograin Solid Carbide, AlTiN Coated
SGS® 68676 108M Plus General Purpose Short Length Drill Bit, 2.8 mm Drill - Metric, 0.1102 in Drill - Decimal Inch, Micrograin Solid Carbide, AlTiN Coated
Manufacturer: KYOCERA SGS Precision tools, Inc.
Brand: SGS®
Part #: SGS-68676
MPN: 68676
CPN:
| Applicable Materials | : | Cast Iron, Composites, Non-Ferrous Metals, Plastic, Steel, Stainless Steel and Titanium |
| Cutting Depth | : | 3XD |
| Cutting Direction | : | Right Hand |
| Cutting Edge Material | : | Micrograin Solid Carbide |
| Drill Diameter Measurement System | : | Metric/Imperial |
| Drill Size - Decimal Inch | : | 0.1102 in |
| Drill Size - Metric | : | 2.8 mm |
| Finish | : | AlTiN Coated |
| Flute Length | : | 16 mm |
| Flute Type | : | Spiral |
| Material | : | Micrograin Solid Carbide |
| Number of Flutes | : | 2 |
| Overall Length | : | 46 mm |
| Point Angle | : | 145 deg |
| Point Type | : | Self-Centering |
| Series | : | 108M Plus |
| Shank Size | : | 2.8 mm Dia x 30 mm L |
| Shank Type | : | Straight |
| Type | : | General Purpose |
SGS® Short Length Drill Bit, General Purpose, Series: 108M Plus, Metric/Imperial, 2.8 mm Drill - Metric, 0.1102 in Drill - Decimal Inch, 46 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 16 mm Flute Length, 2.8 mm Dia x 30 mm L Shank, Straight Shank, 145 deg Point, Self-Centering Point, Right Hand Cutting Direction, Micrograin Solid Carbide Cutting Edge, Micrograin Solid Carbide, AlTiN Coated, Applicable Materials: Cast Iron, Composites, Non-Ferrous Metals, Plastic, Steel, Stainless Steel and Titanium
- This short rigid drill is an ideal compromise of performance and economy in shallow hole drilling
- Effective in a wide range of materials
- Solid carbide provides better rigidity than high speed steel
- It is extremely heat resistant
- Aluminum titanium nitride (AlTiN) is one of the most abrasive resistant and hardest of the coatings
- The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools
- Spiral flutes are constructed with a higher flute angle to remove chips more easily
