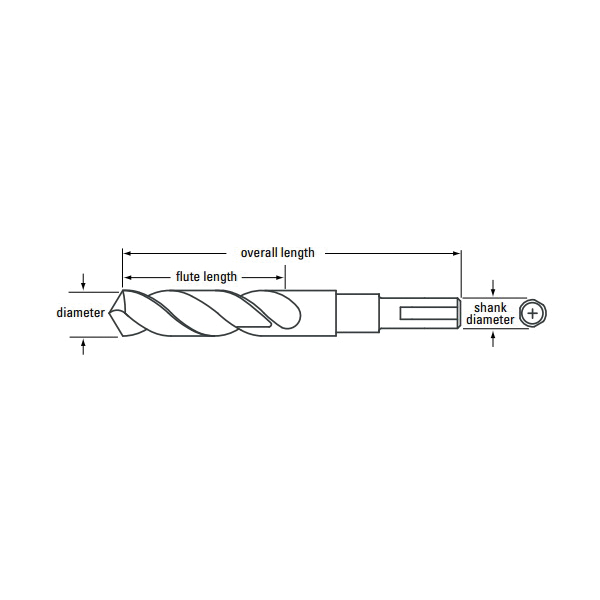

Chicago-Latrobe® 52481 190F Silver & Deming Drill, 1-17/64 in Drill - Fraction, 1.2656 in Drill - Decimal Inch, 1/2 in Shank, HSS
Chicago-Latrobe® 52481 190F Silver & Deming Drill, 1-17/64 in Drill - Fraction, 1.2656 in Drill - Decimal Inch, 1/2 in Shank, HSS
Manufacturer: Greenfield Industries
Brand: Chicago-Latrobe®
Part #: CHI508-52481
MPN: 52481
CPN:
| Applicable Materials | : | Alloy Steel, Carbon Steel, Cast Iron and Wood |
| Cutting Depth | : | 3-1/8 in |
| Cutting Direction | : | Right Hand |
| Cutting Edge Material | : | HSS |
| Drill Size - Decimal Inch | : | 1.2656 in |
| Drill Size - Fraction | : | 1-17/64 in |
| Finish | : | Black/Steam Oxide |
| Flute Length | : | 3-1/8 in |
| Flute Type | : | Spiral |
| Material | : | HSS |
| Number of Flutes | : | 2 |
| Overall Length | : | 6 in |
| Point Angle | : | 118 deg |
| Point Type | : | Radial |
| Series | : | 190F |
| Shank Size | : | 1/2 in |
| Shank Type | : | Flat/Reduced |
Chicago-Latrobe® Silver & Deming Drill, Series: 190F, 1-17/64 in Drill - Fraction, 1.2656 in Drill - Decimal Inch, 6 in Overall Length, 3-1/8 in Cutting Depth, 2 Flutes, Spiral Flute, 3-1/8 in Flute Length, 1/2 in Shank, Flat/Reduced Shank, 118 deg Point, Radial Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Black/Steam Oxide, Applicable Materials: Alloy Steel, Carbon Steel, Cast Iron and Wood
- Shank with three flats for a more positive grip in the drill chuck, flats reduce drill slippage under high load
- Standard 6 in overall length and 3-1/8 in flute length for increased rigidity, less deflection and better hole accuracy
- Standardized lengths result in minimal adjustment during tool changes in screw machines and machining centers
- Ideal for portable drilling due to increased rigidity
- Black oxide surface finish increases wear resistance and adds lubricity, improving chip flow
