SGS® 07424 M226 Micro Drill Bit With External Coolant, 0.49 mm Drill - Metric, 0.0193 in Drill - Decimal Inch, Submicron Grain Carbide, Ti-NAMITE®-A Coated
SGS® 07424 M226 Micro Drill Bit With External Coolant, 0.49 mm Drill - Metric, 0.0193 in Drill - Decimal Inch, Submicron Grain Carbide, Ti-NAMITE®-A Coated
Manufacturer: KYOCERA SGS Precision tools, Inc.
Brand: SGS®
Part #: SGS-07424
MPN: 07424
CPN:
California residents
| Applicable Materials | : | Steel, Stainless Steel, Cast Iron, High Temperature Alloy, Titanium Alloy, Non-Ferrous, Plastics/Composites and Hardened Steels |
| Cutting Direction | : | Right Hand |
| Cutting Edge Material | : | Submicron Grain Carbide |
| Drill Diameter Measurement System | : | Metric |
| Drill Size - Decimal Inch | : | 0.0193 in |
| Drill Size - Metric | : | 0.49 mm |
| Finish | : | Ti-NAMITE®-A Coated |

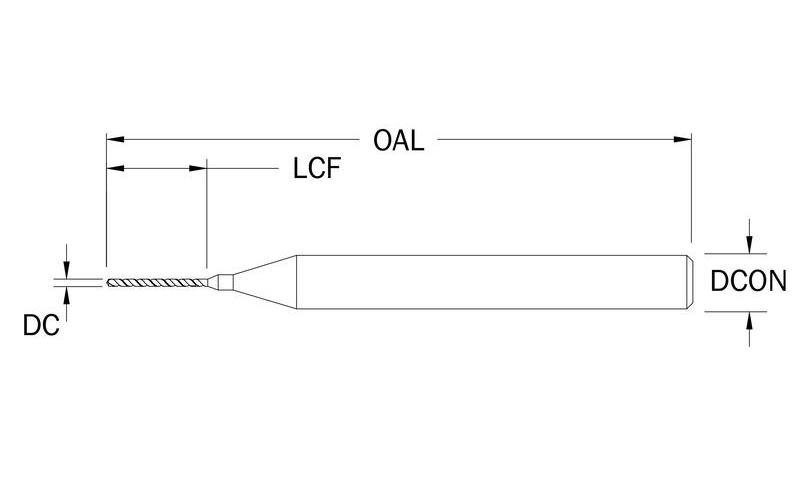

| Flute Length | : | 6.6 mm |
| Flute Type | : | Spiral |
| Material | : | Submicron Grain Carbide |
| Number of Flutes | : | 2 |
| Overall Length | : | 38 mm |
| Point Angle | : | 130 deg |
| Point Type | : | 4-Facet |
| Series | : | M226 |
| Shank Size | : | 3 mm Dia |
| Shank Type | : | Common |
SGS® Micro Drill Bit, Series: M226, Metric, 0.49 mm Drill - Metric, 0.0193 in Drill - Decimal Inch, 38 mm Overall Length, 2 Flutes, Spiral Flute, 6.6 mm Flute Length, 3 mm Dia Shank, Common Shank, 130 deg Point, 4-Facet Point, Right Hand Cutting Direction, Submicron Grain Carbide Cutting Edge, Submicron Grain Carbide, Ti-NAMITE®-A Coated, Applicable Materials: Steel, Stainless Steel, Cast Iron, High Temperature Alloy, Titanium Alloy, Non-Ferrous, Plastics/Composites and Hardened Steels
- 4-facet point design stabilizes on entry for superior hole size control and tool life (>0.08mm), 2-facet point on 0.08mm and smaller
- Mirror surface finishes improve chip flow as hole depth increases
- Ti-Namite A coating and uncoated options for the ultimate performance in a variety of ferrous and non-ferrous workpiece materials
