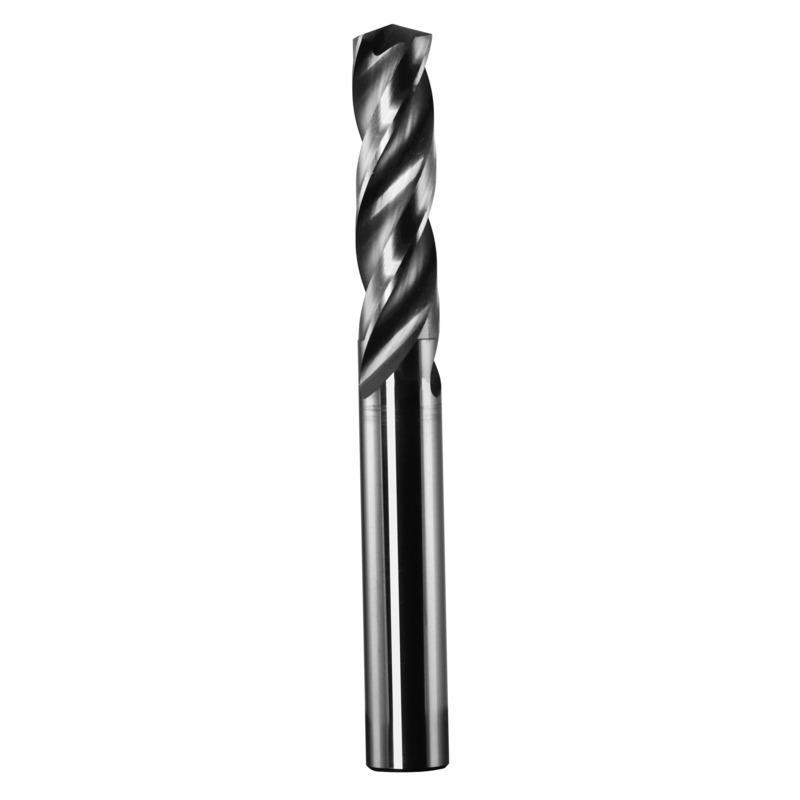

SGS® 53136 103 General Purpose Jobber Length Drill Bit, 9/16 in Drill - Fraction, 0.5625 in Drill - Decimal Inch, 150 deg Point, Micro Grain Solid Carbide, Uncoated
SGS® 53136 103 General Purpose Jobber Length Drill Bit, 9/16 in Drill - Fraction, 0.5625 in Drill - Decimal Inch, 150 deg Point, Micro Grain Solid Carbide, Uncoated
Manufacturer: KYOCERA SGS Precision tools, Inc.
Brand: SGS®
Part #: SGS-53136
MPN: 53136
CPN:
| Applicable Materials | : | Steel, Cast Iron, Hardened Steel and Non-Ferrous Metals |
| Cutting Depth | : | 5XD |
| Cutting Direction | : | Right Hand |
| Cutting Edge Material | : | Micro Grain Solid Carbide |
| Drill Diameter Measurement System | : | Imperial |
| Drill Size - Decimal Inch | : | 0.5625 in |
| Drill Size - Fraction | : | 9/16 in |
| Finish | : | Uncoated |
| Flute Length | : | 3 in |
| Flute Type | : | Spiral |
| Material | : | Micro Grain Solid Carbide |
| Number of Flutes | : | 3 |
| Overall Length | : | 4-3/4 in |
| Point Angle | : | 150 deg |
| Point Type | : | Standard |
| Series | : | 103 |
| Shank Size | : | 9/16 in |
| Shank Type | : | Straight |
| Through Coolant (Yes/No) | : | No |
| Type | : | General Purpose |
SGS® Jobber Length Drill Bit, General Purpose, Series: 103, Imperial, 9/16 in Drill - Fraction, 0.5625 in Drill - Decimal Inch, 4-3/4 in Overall Length, 5XD Cutting Depth, 3 Flutes, Spiral Flute, 3 in Flute Length, 9/16 in Shank, Straight Shank, 150 deg Point, Standard Point, Right Hand Cutting Direction, Micro Grain Solid Carbide Cutting Edge, No Through Coolant, Micro Grain Solid Carbide, Uncoated, Applicable Materials: Steel, Cast Iron, Hardened Steel and Non-Ferrous Metals
