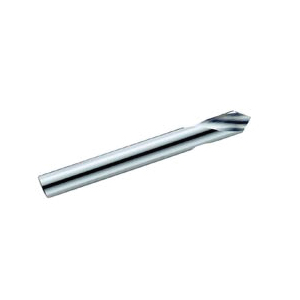

GARR 91676 1600 General Purpose NC Spotting Drill, 7/16 in Dia, 4 in OAL, Submicron Grain Solid Carbide, Uncoated
GARR 91676 1600 General Purpose NC Spotting Drill, 7/16 in Dia, 4 in OAL, Submicron Grain Solid Carbide, Uncoated
Manufacturer: Garr Tool Company
Brand: GARR
Part #: GRT-91676
MPN: 91676
CPN:
| Applicable Materials | : | Cobalt Base Alloy, Nickel Base Alloy, Iron Base Alloy, Monel, Titanium Alloy, Stainless Steel, High Strength Tool Steels, Medium Alloy Tool Steel, Carbon Steel, Cast Material, Aluminum, Magnesium, Copper, Brass, Bronze and Composite Material |
| Cutting Depth | : | 1 in |
| Cutting Direction | : | Right Hand |
| Cutting Edge Material | : | Submicron Grain Solid Carbide |
| Diameter | : | 7/16 in |
| Finish | : | Uncoated |
| Flute Length | : | 1 in |
| Flute Type | : | Spiral |
| Material | : | Submicron Grain Solid Carbide |
| Number of Flutes | : | 2 |
| Overall Length | : | 4 in |
| Point Angle | : | 82 deg |
| Point Type | : | Cam Relieved |
| Series | : | 1600 |
| Shank Size | : | 7/16 in |
| Type | : | General Purpose |
GARR NC Spotting Drill, General Purpose, Series: EF Series TA203344, 7/16 in Dia, 4 in Overall Length, 1 in Cutting Depth, 2 Flutes, Spiral Flute, 1 in Flute Length, 7/16 in Shank, 82 deg Point, Cam Relieved Point, Right Hand Cutting, Submicron Grain Solid Carbide Cutting Edge, Submicron Grain Solid Carbide, Uncoated, Applicable Materials: Cobalt Base Alloy, Nickel Base Alloy, Iron Base Alloy, Monel, Titanium Alloy, Stainless Steel, High Strength Tool Steels, Medium Alloy Tool Steel, Carbon Steel, Cast Material, Aluminum, Magnesium, Copper, Brass, Bronze and Composite Material
- Spotting to stabilize long drills
- Can be used for chamfering
- Rough, angled or spherical surfaces
- For locating on true position
- Live tooling recommended on lathe processes
